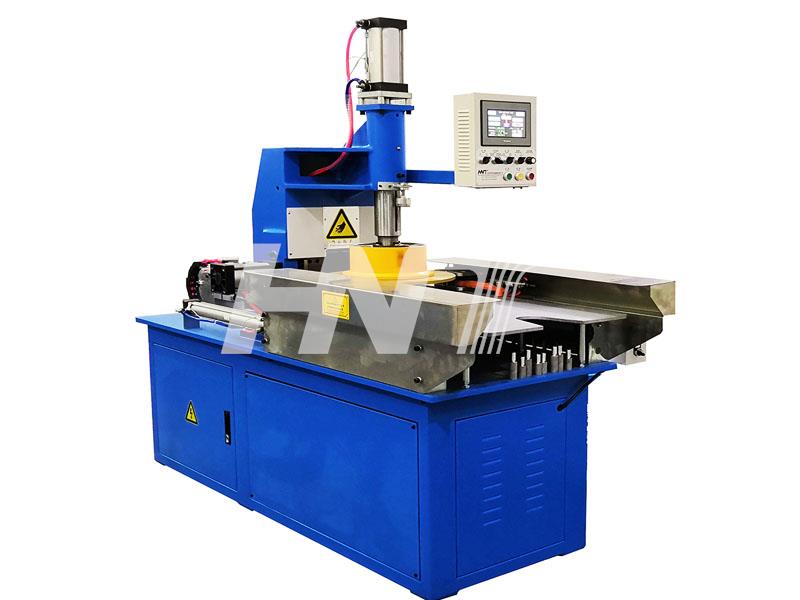

Cable Coiling Machine：
1. This machine can be directly connected after extruding machines or payoff machines;
2. The machine is controlled by a touch panel, which makes it easier to operate;
3. Servo motor traversing system are utilized in this machine, making the movement more coordinated and appearance of the finished wire coils better;
4. Machine with fault detection function, when proble occurs, it wil alarm to the operators;
5. Can store 99 different packing specifications, if a different type of coils are to be packaged, simply choose from the stored specifications, and the machine will be ready to run.
Technical parameter:
| Model | Coil Height (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Wire Diameter (mm) | Rotating Speed (RPM) |
C0836 | 40 - 80 | 180 - 360 | 120 - 200 | 0.8 - 6 | 1000 |
C1246 | 50 - 100 | 200 - 460 | 140 - 220 | 0.8 - 6 | 800 |
C1860 | 60 - 180 | 20 - 600 | 180 - 250 | 5 - 15 | 200 |
C2060 | 60 - 200 | 220 - 600 | 180 - 250 | 5 - 15 | 150 |
C2480 | 80 - 240 | 300 - 800 | 250 - 320 | 10 - 25 | 100 |
