200+120 Jacket Extrusion Line
The 200 + 120 Power Cable Jacket Extrusion Line is designed for HV cable jacket or sheath extrusion. Applicable extrusion materials include PVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE and etc.
Technical Parameter:
Model | Φ200 + Φ120 |
Screw diameter | Φ200 mm + Φ120 mm |
Extrusion amount | 400 kg/hr |
Viable conductor shape | Circular, Sector, Stranded, Solid |
Applicable material | PVC, PE, LDZH, LDLH, semi-conducting PVC, semi-conducting PE |

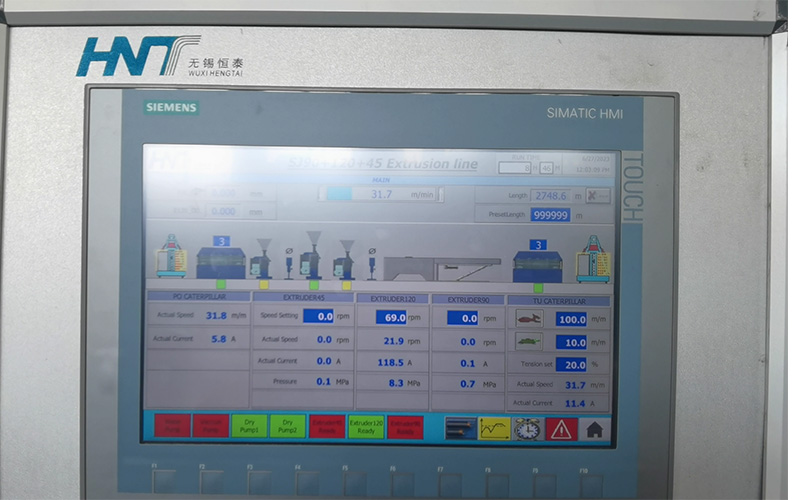

Control mode | PLC |
Max line speed | 80 m/min |
Wire diameter control precision | ±0.02 mm |

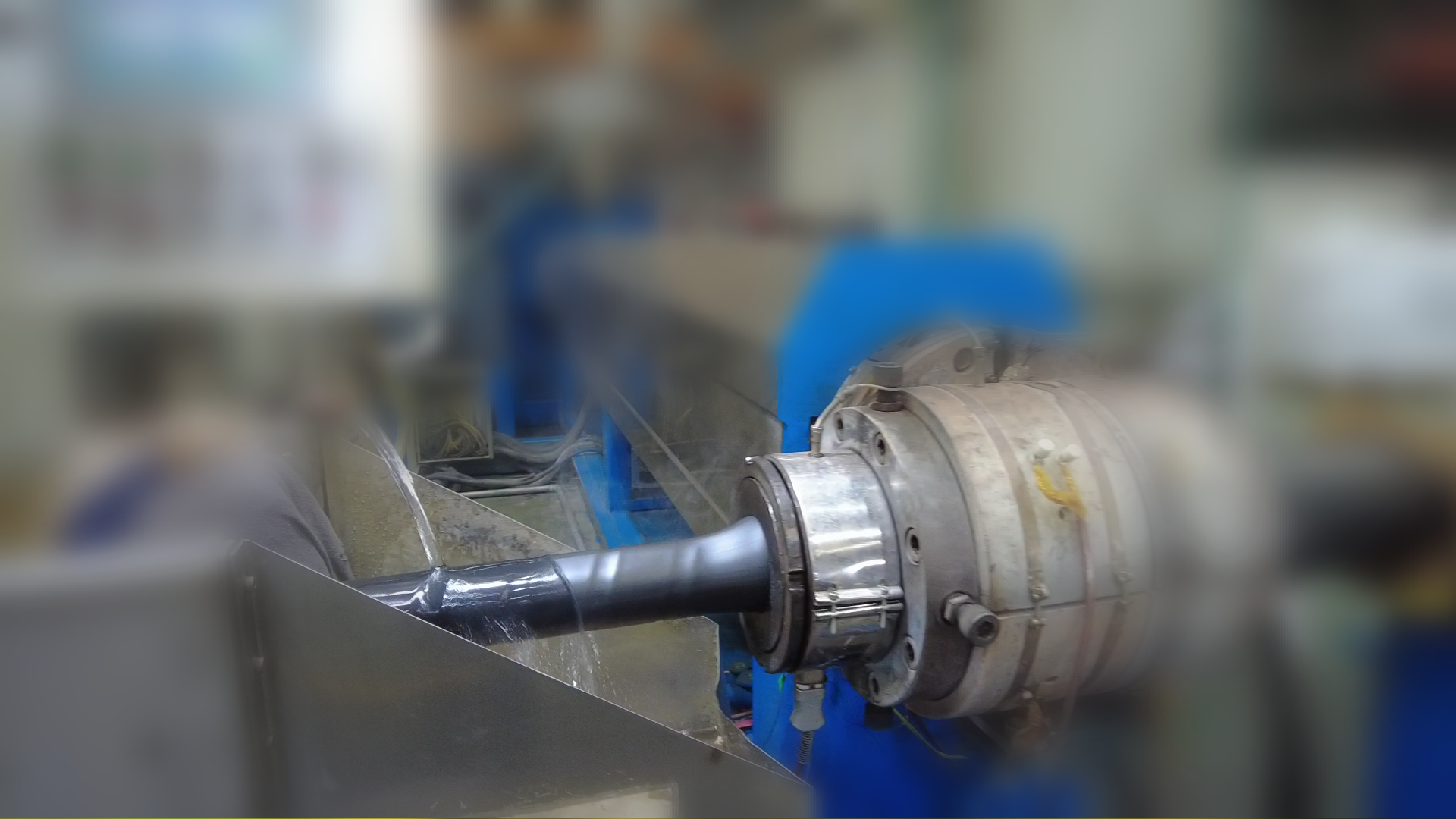

Machine Running Video:
Customers' Feedback:
