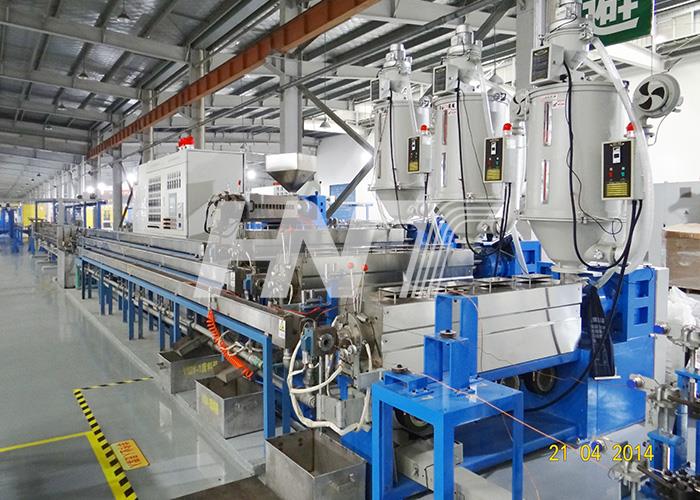

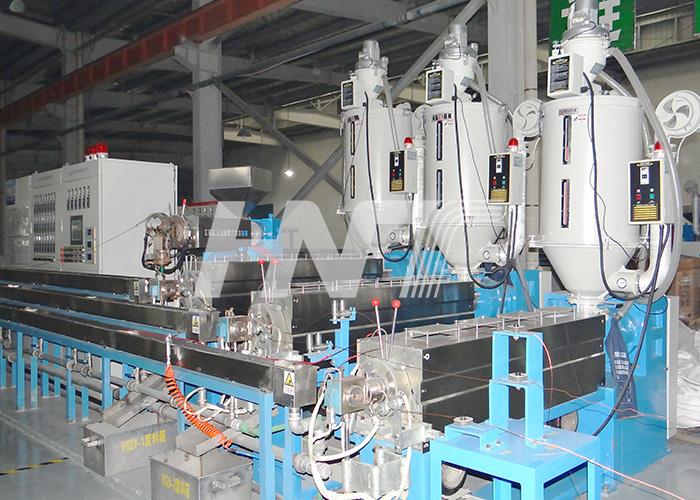

3x70 VVF tandem extrusion line
Description
1. VVF tandem extrusion line is used for manufacturing building wires;
2. The line has PLC built-in and touch screen for control, easy to operate and user friendly;
3. Different coiling and packing methods are available on customer requirements;
4. The PLC mode has already stored various wire settings, if the user would like to manufacture a different size of wire, simply load a new wire setting, and the machine will be ready to operate ;
5. Three lines integrated and combined into the same line, saving place and labor;
6. Automatic fault detecting system is built-in to warn operators and show fault information on touch screen once a problem occurs.
Extruder Function:
Line Technical Parameter:
| Dia. Of copper | No. of cores | Insulation Thickness | sheathing thickness | Dia. Of product | Length | Weight | Production speed | |
| Short Dia. | long Dia. | |||||||
| 1.6 mm | 2 | 0.8mm | 1.5mm | 6.2 | 9.4 | 100m | 100kg/km | 220m/min |
| 1.6mm | 3 | 0.8mm | 1.5mm | 6.2 | 12.6 | 100m | 140kg/km | 180m/min |
| 2.0mm | 2 | 0.8mm | 1.5mm | 6.6 | 10.2 | 100m | 125kg/km | 220m/min |
| 2.0mm | 3 | 0.8mm | 1.5mm | 6.6 | 13.8 | 100m | 180kg/km | 170m/min |
| 2.6mm | 2 | 1.0mm | 1.5mm | 7.6 | 12.2 | 100m | 190kg/km | 130m/min |
| 2.6mm | 3 | 1.0mm | 1.5mm | 7.6 | 16.8 | 100m | 275kg/km | 130m/min |
Line Take-up Method:
Our Customer:
Customers' Feedback:
