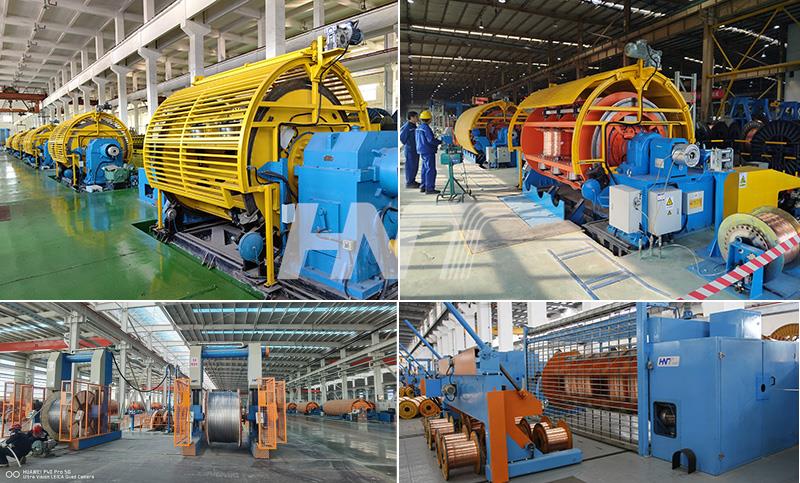

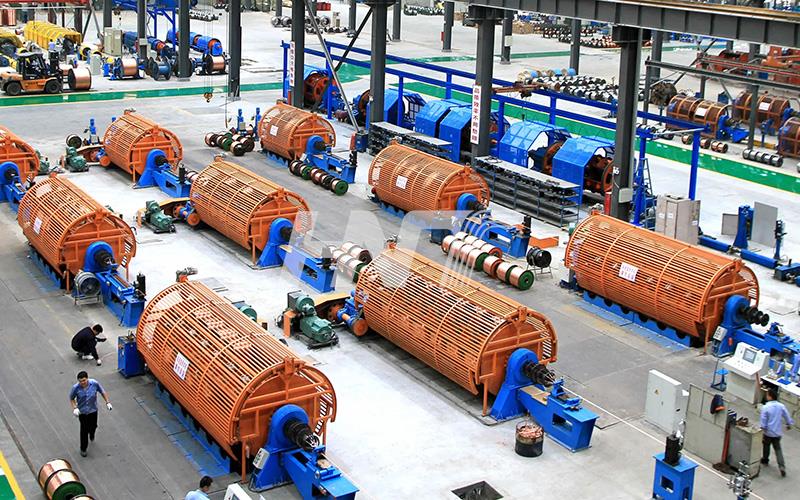

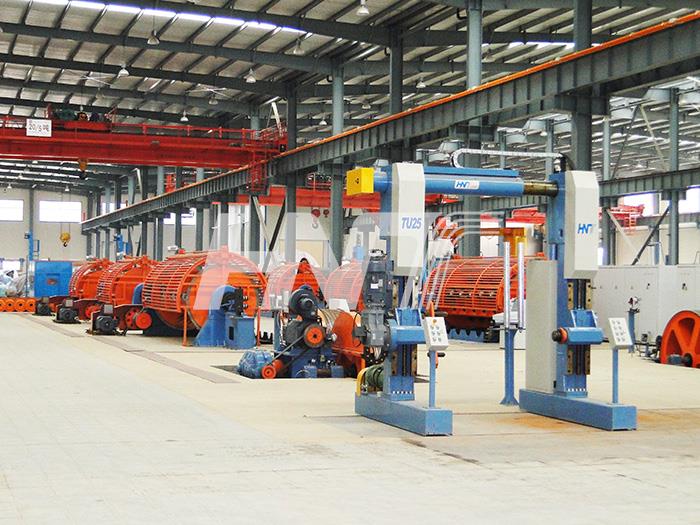

Rigid Frame Strander:
The machine (with lumped loading device) is suitable for producing large length, compact ,bare Al/Cu wire, and ACSR, aluminum alloy wire and sector conductor. The machine is driven by separate motor for each cage and dual capstan; the stranding pitch can be adjusted by Touch screen.

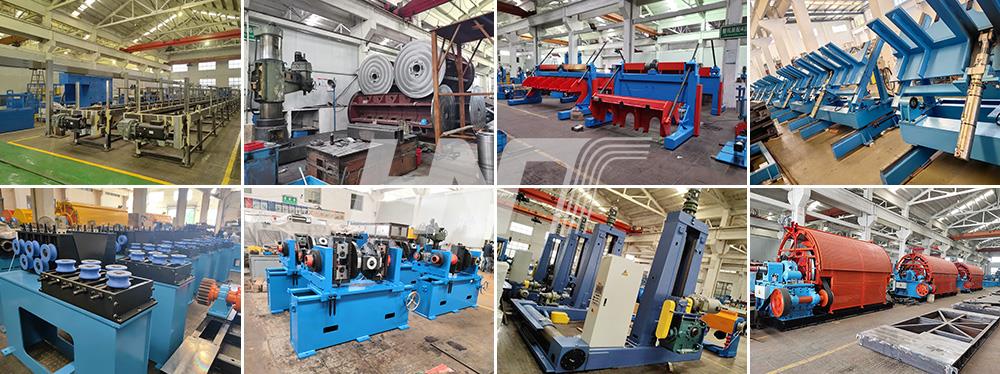

Line Main Parts:
| Payoff | 1set |
| Wire Guider | 1set |
| Stranding cage 6B,12B, 18B, 24B, 30B, 36B | Each 1set |

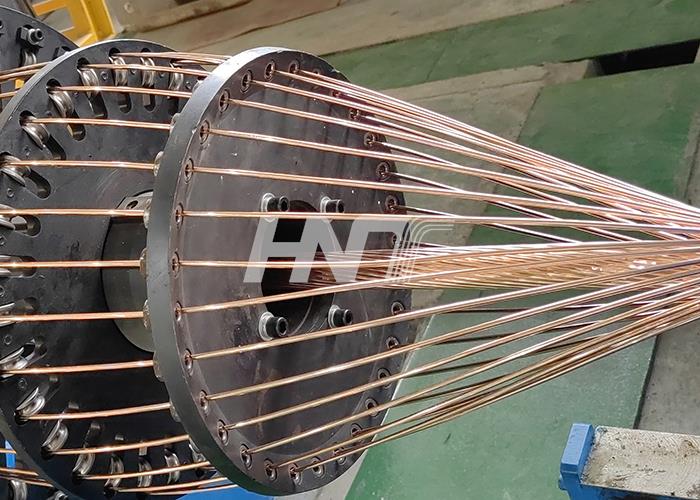

| single wire pre-twisted | Each 1set |
| Wire Closing and Press mold base | Each 1set |
| Meter Counter | 1set |

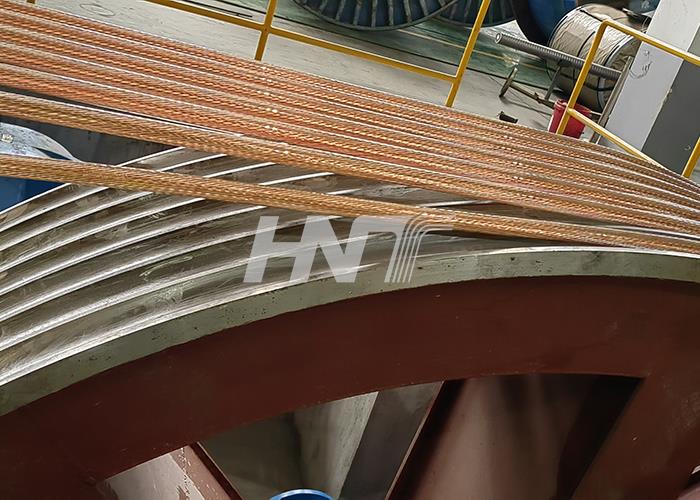

| Double wheel capstan 2000/2500 | 1set |
| Side/bottom Lumped loading system | 3set |
| Take up | 1set |
| Electric control system | 1set |
Main Technical Date:
| Machine Model | JLK-630 | JLK-710 |
| Single Copper Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Single Alumium Wire Dia. | Φ1.8～Φ5.0mm | Φ1.8～Φ5.0mm |
| Single Alumium Alloy Wire Dia. | Φ1.7～Φ4.5mm | Φ1.7～Φ4.5mm |
| Max. stranded wire dia. | Φ30-55mm | Φ30-55mm |
| Lay length | 40～350mm(step-less adjust) | 40～350mm(step-less adjust) |
| Max rotate speed | 500rpm | 500rpm |
| Max line speed | 100m/min | 100m/min |
| Max rewinding speed | 150～200m/min | 150～200m/min |
Exhibition in Düsseldorf, Germany：
Brazil Exhibition：
Shanghai, China Exhibition:
