630/710 Rigid Stranders

Rigid Stranding Machine

Main Features:

1. The machine is used for stranding copper, Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped conductors to be used for the cable manufacturing or for the Over Head Conductors.

2. Each stranding cage is individually driven by a motor, which is independently controlled, with rotating speed separately adjusted, through toothed pulley.
3. Provided with batch loader to load and unload the bobbins altogether.

4. Equipped with constant tension control system and intelligent brake system.

Main Technical Date:

Machine Model

500, 630, 710, 800 bobbin

Diameter Of Single Wire

Copper

Φ1.5~Φ4.5mm

Aluminium

Φ1.8~Φ5.0mm

Aluminum Alloy

Φ1.5~Φ4.5mm

Cage Rotating Speed

6 Bobbin

220RPM

12 Bobbin

200RPM

18 Bobbin

190 RPM

24 Bobbin

170 RPM

30 Bobbin

140 RPM

36 Bobbin

120 RPM

42 Bobbin

100 RPM


Φ1.7~Φ4.5mm

Φ1.7~Φ4.5mm

Lay length

Steplessly Adjustable

Bobbin Size in Stranding Cage

PND500, PND630, PND710,

Dual Wheel Capstan

2000mm to 3200mm

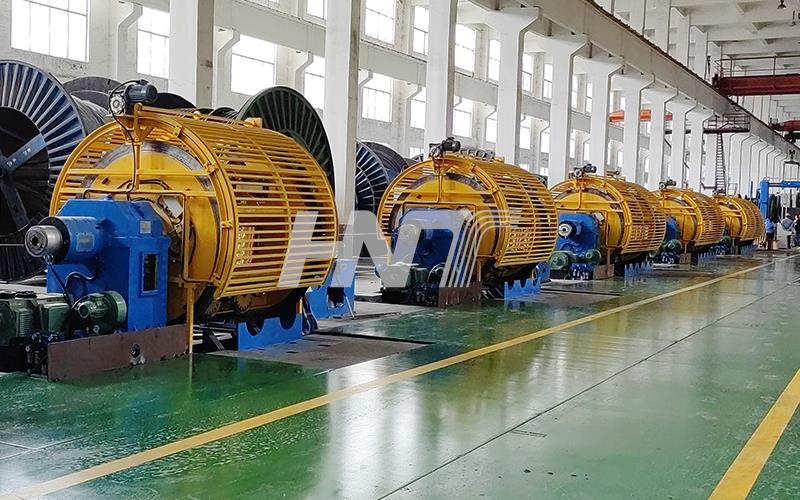

Production Workshop:
Rigid-Stranding-Manufacture

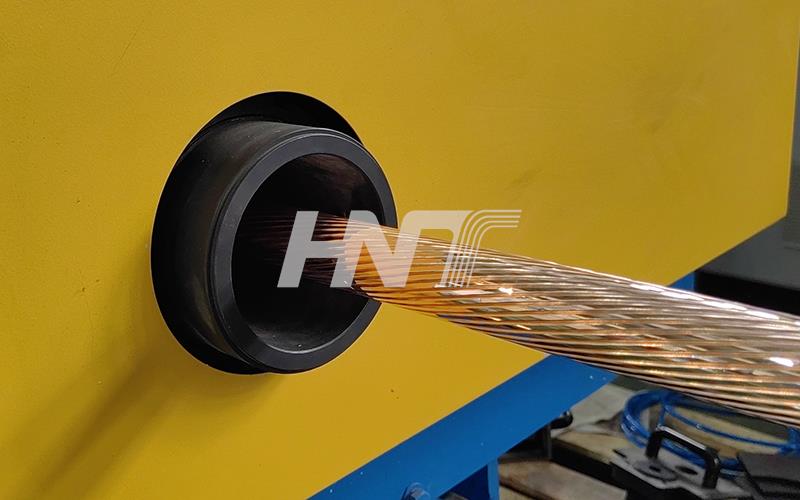

Rigid Strander Line In Operation:
Rigid-Stranding
Our Customers:
